3 x 19 Wire Rope Assemblies - The Oceanographic Standard

Galvanized Jacketed 3 x 19 Construction

Mooring Systems, Inc. specializes in the fabrication of wire rope assemblies designed specifically for oceanographic applications.

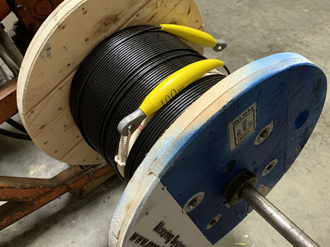

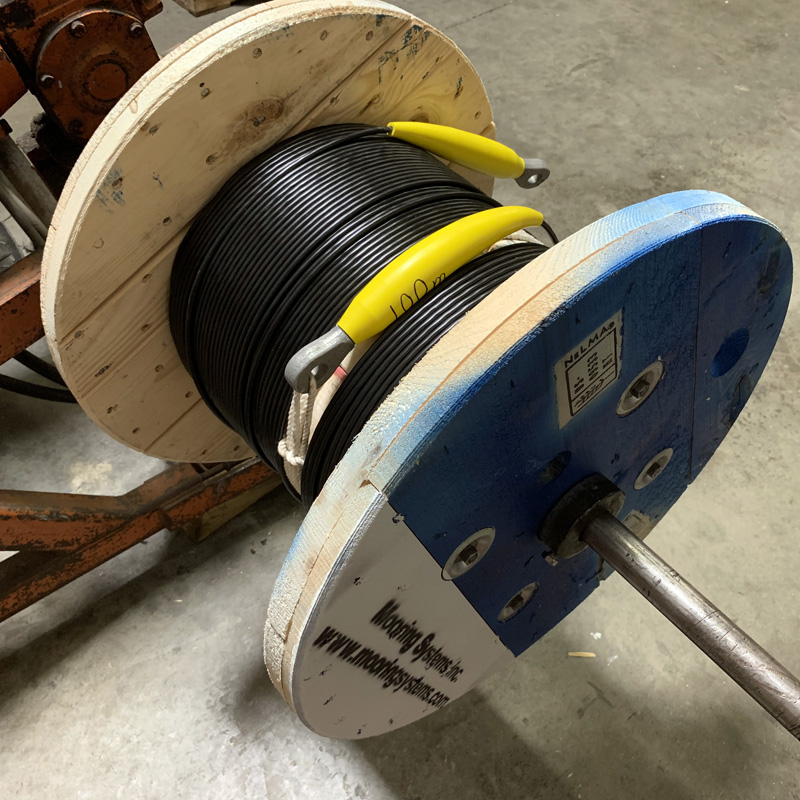

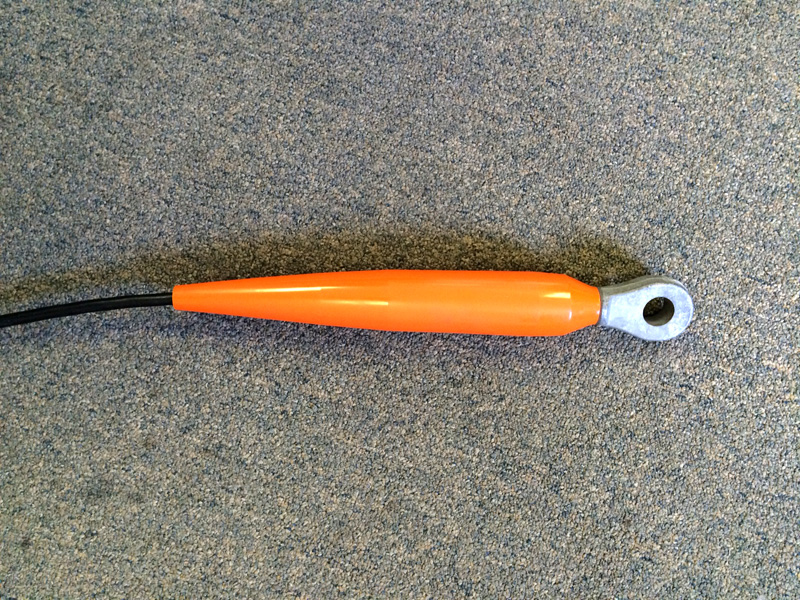

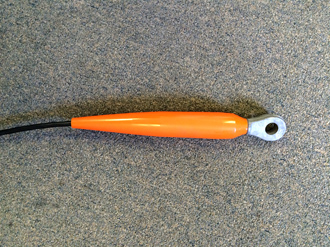

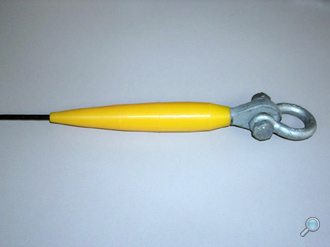

Assembled termination (shackle also shown)

Above: Assembled termination (shackle also shown)

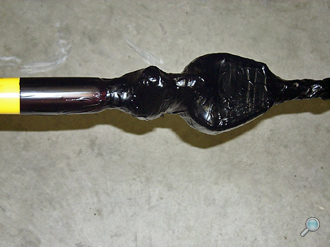

Wire rope termination attached to nylon rope termination, assembly is then wrapped & coated

Above: Wire rope termination attached to nylon rope termination
(assembly is then wrapped & coated)

The 3 x 19 (3 strands, 19 wires per strand) galvanized jacketed wire rope construction with swaged socket terminations is the accepted standard for underwater mooring installations.

Developed at the Woods Hole Oceanographic Institution, this high performance rope is torque resistant to prevent rotation and unwinding, and provides superior handling control.

Wire rope product shipments at our Cataumet, MA facility

Above: Wire rope product shipments at our Cataumet, MA facility

More photos are available in the photo gallery

A durable plastic jacket protects against corrosion for increased mooring longevity.

Reduce Drag & Improve Depth Control

Mooring performance is also improved as the wire rope's low drag coefficient allows better depth control of the top buoy and in-line mounted instrumentation.

  • Features:
  • Torque Resistant Design
  • High Density Plastic Jacket
  • Kink Resistant
  • Excellent Strength to Drag Ratio
  • Superior Resistance to Corrosion
  • Fish Bite Resistant
  • 100% Proof Tested Terminations
  • Polyurethane Boot Reduces Bending Stress
  • Calibrated Wire Lengths
  • Inductive Modem Ready
  • Hydraulically Swaged Galvanized Sockets

3 x 19 Wire Rope Specifications:

Wire Diam.Jacket Diam.Breaking StrengthWeight-SW (lbs./ft.)Term. Shackle Fit
3/16"
(5.0 mm)
0.255"
(6.5 mm)
4,000 lbs.
(1,814 kg)
0.052
(0.0772 kg/m)
1/2" shackle
1/4"
(6.5 mm)
0.330"
(8.4 mm)
6,650 lbs.
(3,016 kg)
0.095
(0.1408 kg/m)
1/2" shackle
5/16"
(8.0 mm)
0.392"
(9.9 mm)
9,900 lbs.
(4,490 kg)
0.143
(0.2128 kg/m)
5/8" shackle
3/4" shackle
3/8"
(9.5 mm)
0.453"
(11.5 mm)
14,800 lbs.
(6,713 kg)
0.213
(0.3169 kg/m)
5/8" shackle
3/4" shackle
7/16"
(11.1 mm)
0.5"
(12.7 mm)
18,800 lbs.
(8,528 kg)
0.281
(0.4180 kg/m)
5/8" shackle/
3/4" shackle

If you have any questions, feel free to contact us.

Assembled termination (shackle also shown)

Above: Assembled termination (shackle also shown)

Wire rope termination attached to nylon rope termination, assembly is then wrapped & coated

Above: Wire rope termination attached to nylon rope termination
(assembly is then wrapped & coated)

Wire rope product shipments at our Cataumet, MA facility

Above: Wire rope product shipments at our Cataumet, MA facility

More photos are available in the photo gallery

Hammerhead Inductive Modem Mooring Termination

Using Robust Wire Rope for a Reliable Data Link

Making the IM data link to surface buoy and jumping across sub-surface mooring sections using:

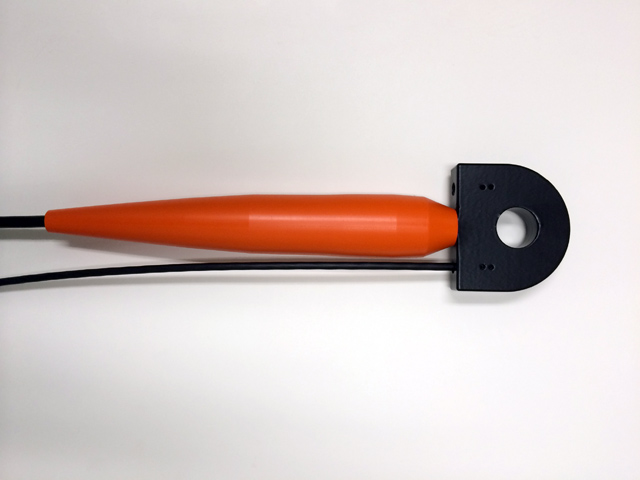

Special swage termination fitting

Above: Special swage termination fitting

New quick connect strain relief

Above: New quick connect strain relief

  • (3 x 19) Jacketed Wire Rope for carrying the IM Data Signal
  • Special Hammerhead "isolated" Termination for Jumper Connection
  • Protective Plastic Cover to Protect Isolation Coating
  • Robust Jumper using (3 x 19) Wire Rope that withstands bending
  • Quick Connect Mechanical Strain Relief

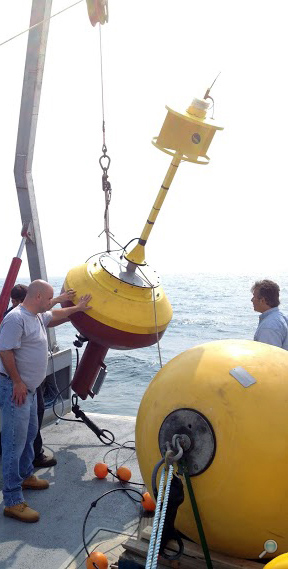

Surface buoy with wire rope data link deployment

Above: Surface buoy with wire rope data link deployment

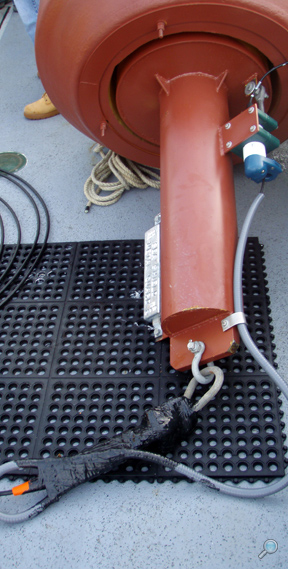

Wire rope data link on surface buoy
