Mooring Rigging & Hardware

Mooring Systems manufactures and supplies a large array of mooring components, hardware, and special rigging devices.

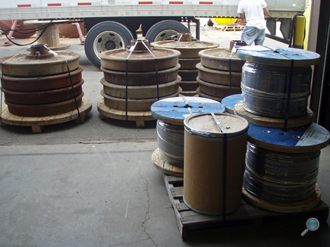

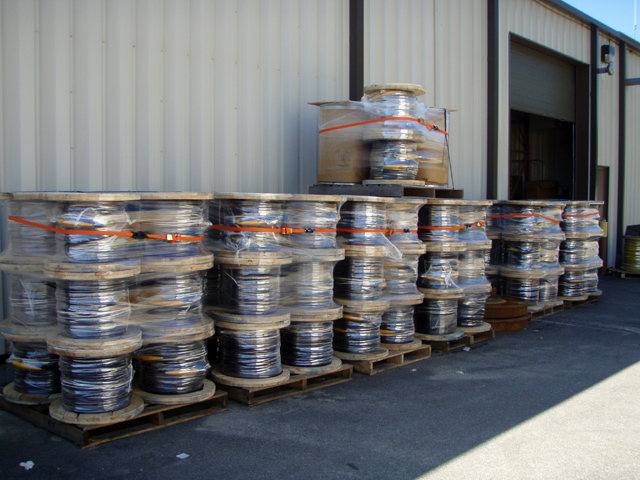

Wire rope product shipments at our Cataumet, MA facility

Above: Wire rope product shipments at our Cataumet, MA facility

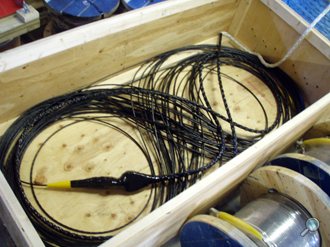

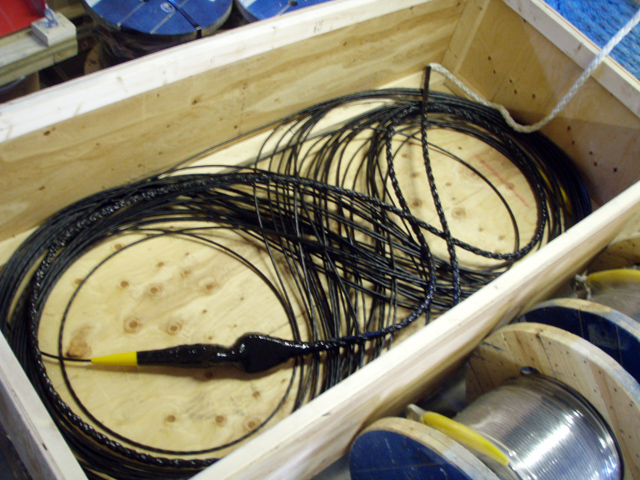

Wire rope termination wrapped to nylon splice for S-tether "top of mooring"

Above: Wire rope termination wrapped to nylon splice
for S-tether "top of mooring"

We have a large press for making wire rope swage fitting terminations and a hydraulic load testing device for testing.

We routinely splice 8-strand plaited ropes and 12-strand spectra ropes for the multitude of mooring and pop-up buoy applications.

Mooring Rigging

We perform complete pre-assembly of a surface buoy S-tether mooring.

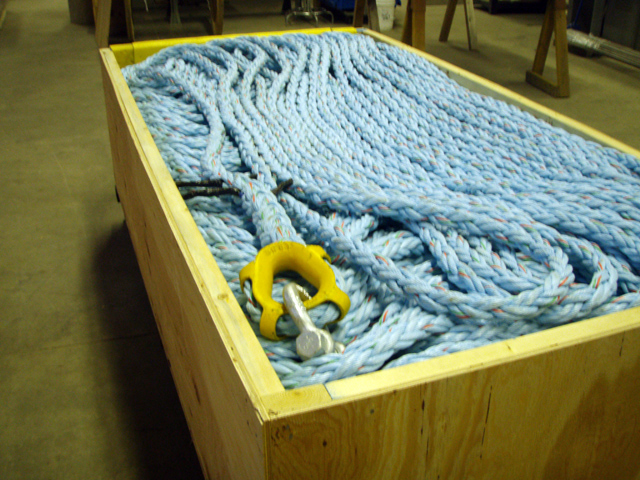

Nylon to polypropylene splice for S-tether "middle"

Above: Nylon to polypropylene splice for S-tether "middle"

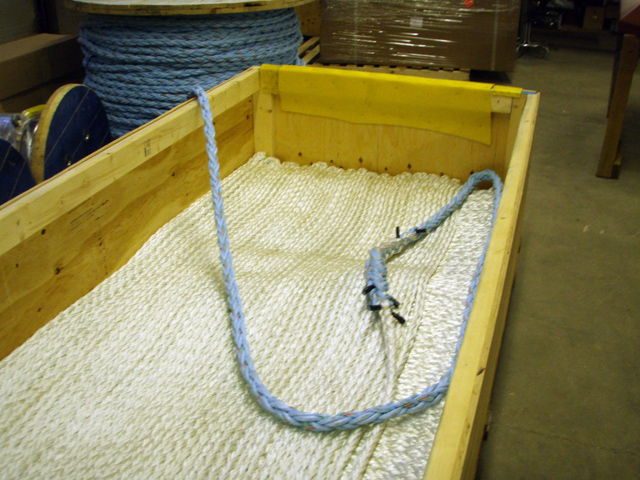

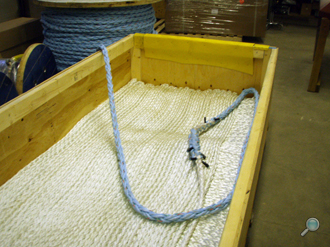

Polypropylene splice for S-tether "bottom of mooring"

Above: Polypropylene splice for S-tether "bottom of mooring"

This application allowed deployment of the mooring directly into the water from the box secured on the ship deck.

Sediment Trap Bridles

We manufacture upper sediment trap rope bridles with no metal components, or stronger wire rope bridles, and heavy lower chain bridles for trap stability during deployment and recovery.

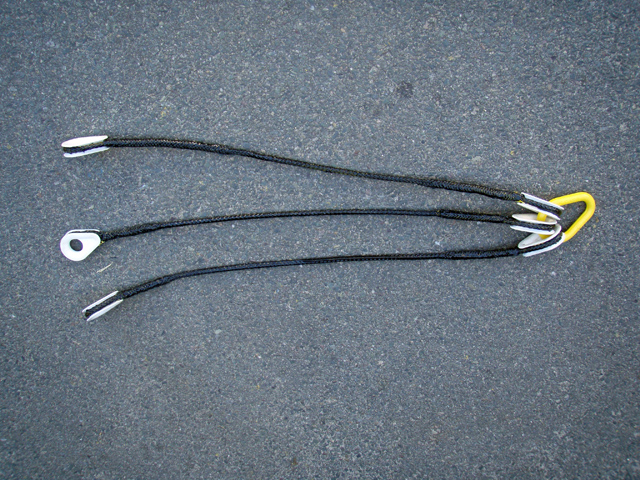

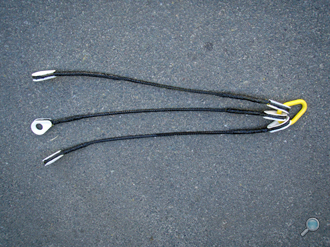

Sediment trap synthetic rope upper bridle

Above: Sediment trap synthetic rope upper bridle

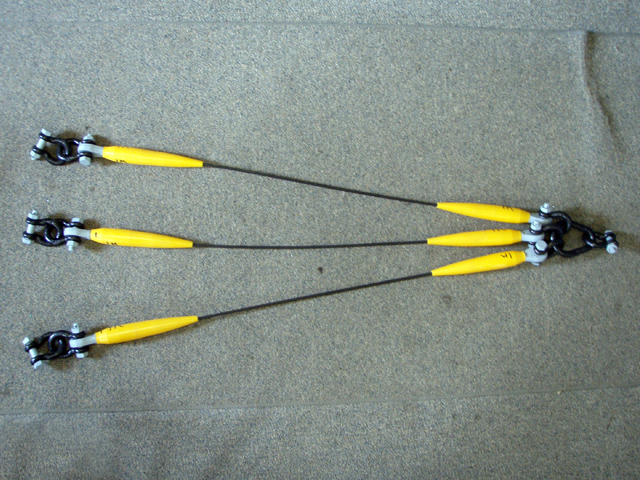

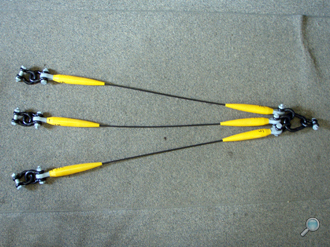

Sediment trap wire rope upper bridle

Above: Sediment trap wire rope upper bridle

Acoustic Release Tandem Hardware

Mooring Systems provides kits for placing two acoustic releases in Tandem for added reliability.

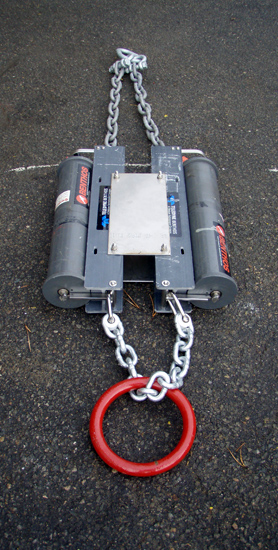

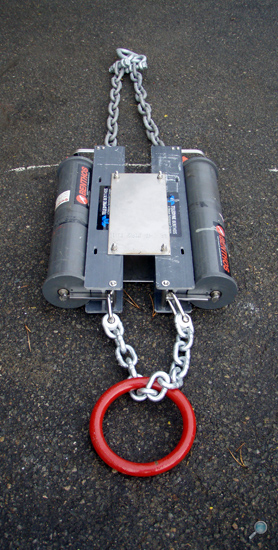

Tandem release kit for dual 875-A

Above: Tandem release kit for dual 875-A

Special mace anchor for added embedment strength

Above: Special mace anchor for added embedment strength

Our kits included release chains with welded drop-links to stream line assemblies for easy slipping through anchor chain weld-less rings.

Our kits include upper bridles, mounting bolts or brackets as needed for the model of release, rings, and upper chain bridles.

Anchors, Hardware, & Chain

Mooring Systems sources only quality chain and hardware for proven reliability for long term use in seawater.

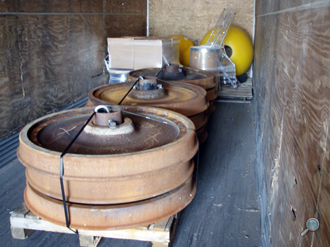

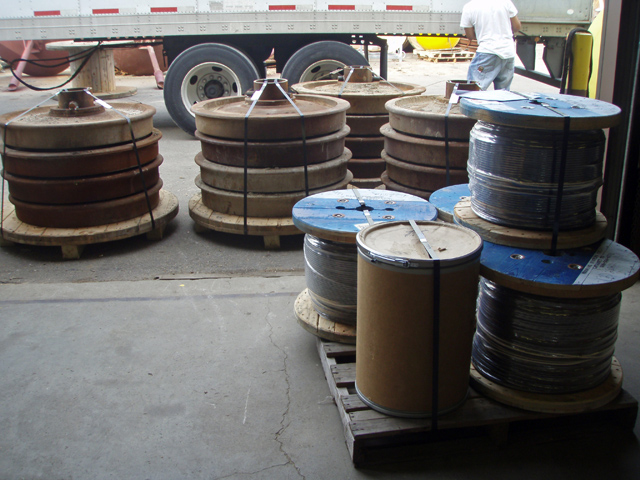

Anchors, wire rope, & chain barrel ready for loading

Above: Anchors, wire rope, & chain barrel ready for loading

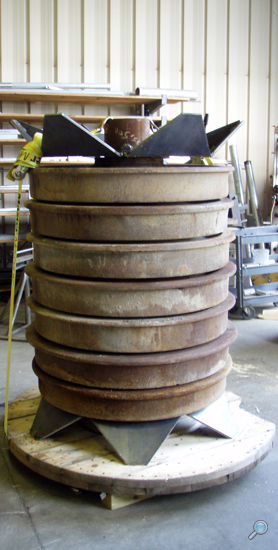

Triple wheel anchors

Above: Triple wheel anchors

We stock the standard sizes for use in most oceanographic instrument mooring applications.

Our Anchors are assembled using 900 lb. locomotive train wheels.

Assemblies can be customized for any number of wheels to obtain the desired ballast weight.

Center posts are provided with a pinned pear link for connecting to the mooring chain.

Specialized Components

Mooring Systems supplies bronze wire rope clamps for CTD and other instrument casts.

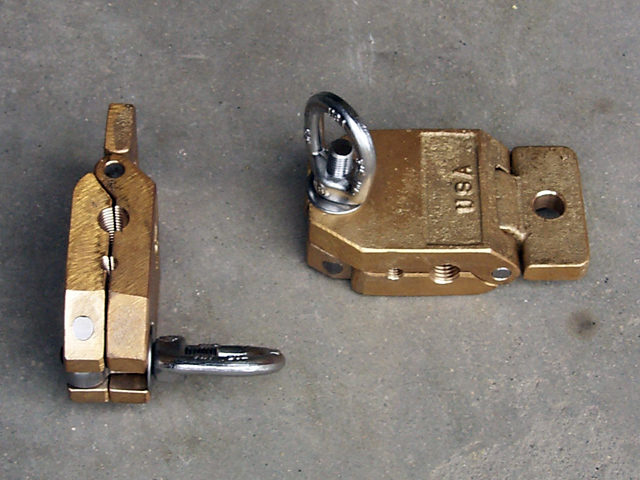

Bronze wire rope clamp for instrument casting

Above: Bronze wire rope clamp for instrument casting

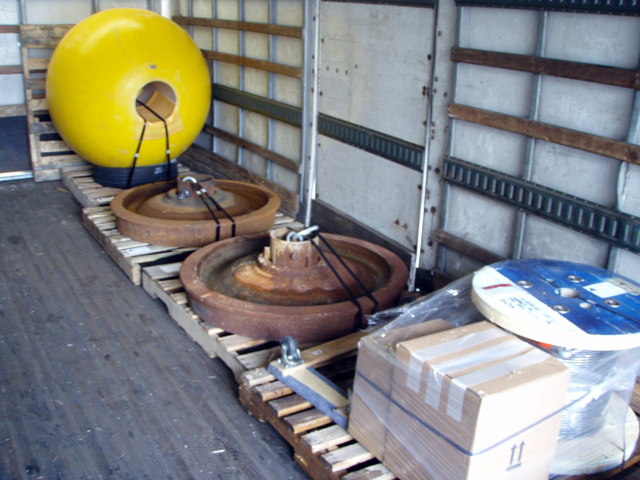

Anchor & buoy product shipments

Above: Anchor & buoy product shipments

More photos are available in the photo gallery

These clamps can be factory set for the wire diameter used on a specific vessels winch.

If you have any questions, feel free to contact us.
